JABAL KHANDAMAH

Location : Makkah Al-Mukaramah- ksa
Year : 2008
Area : 2.5 million sqm

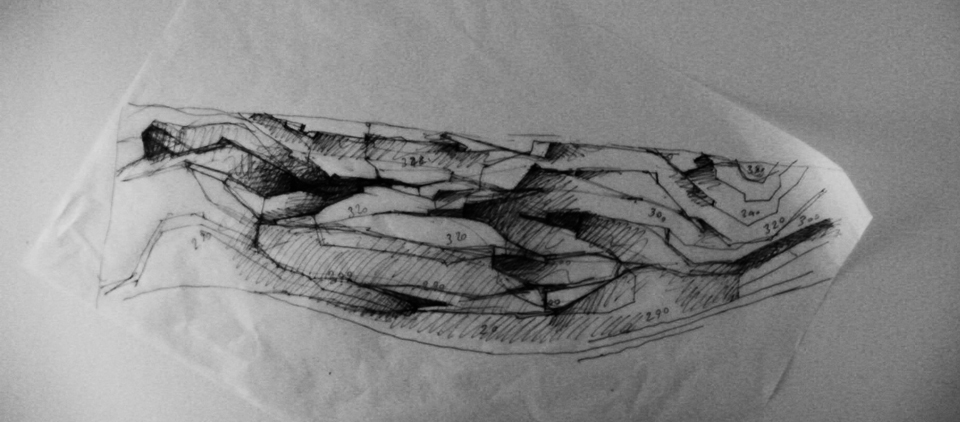

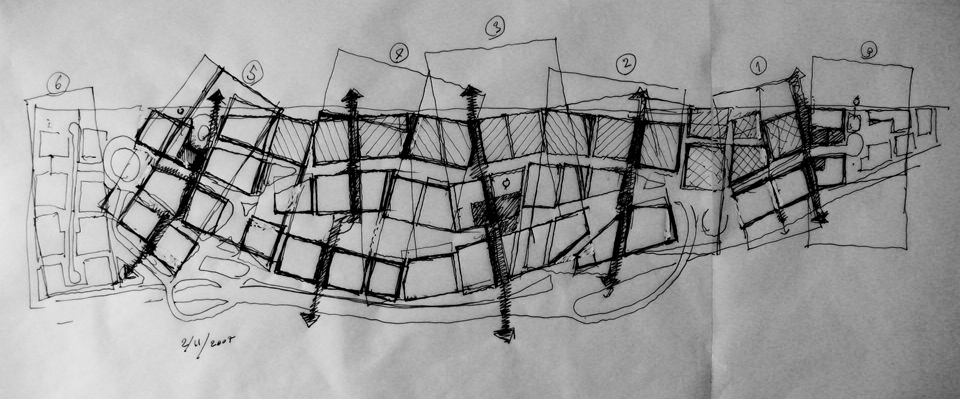

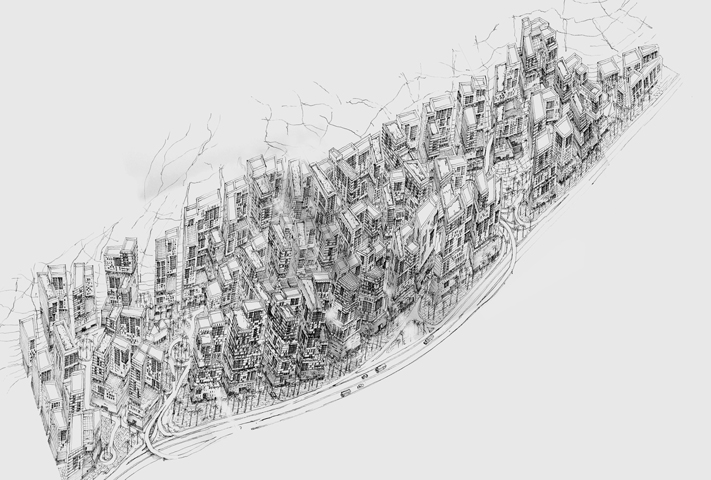

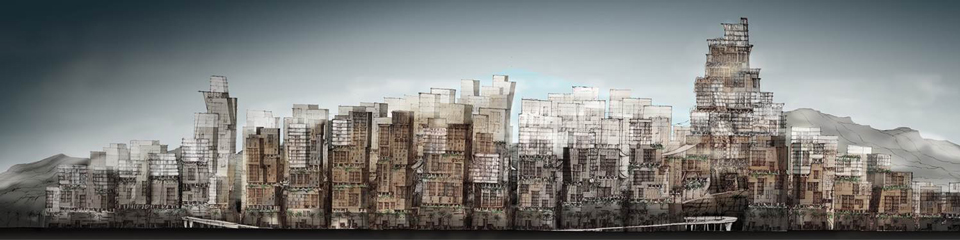

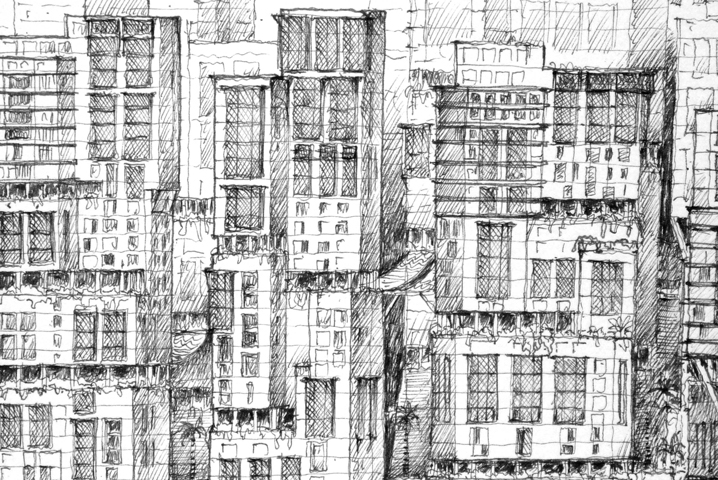

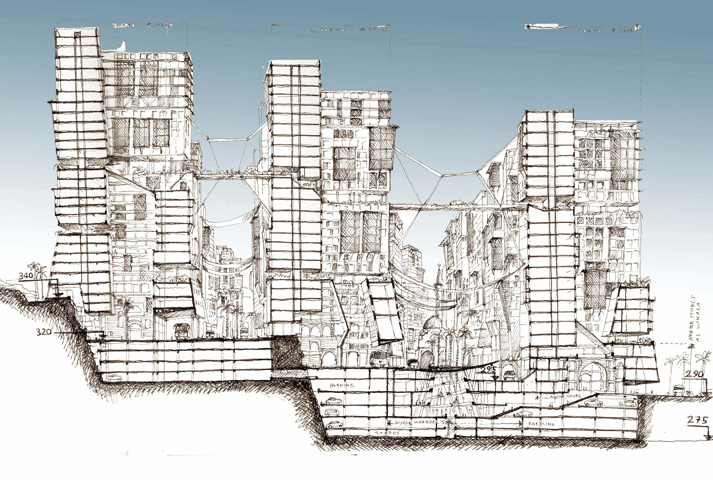

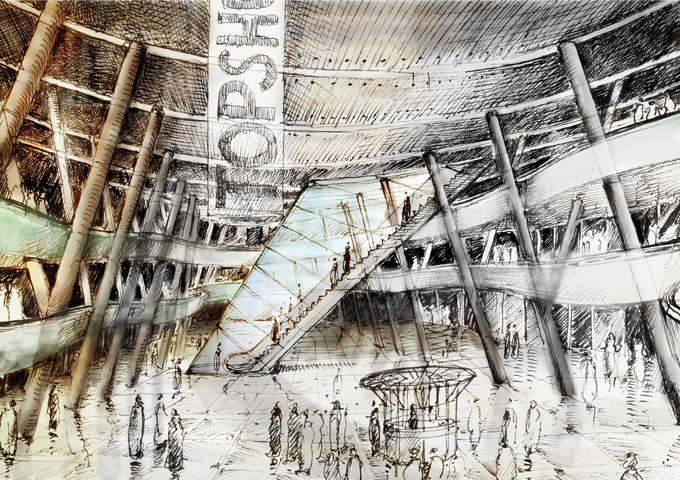

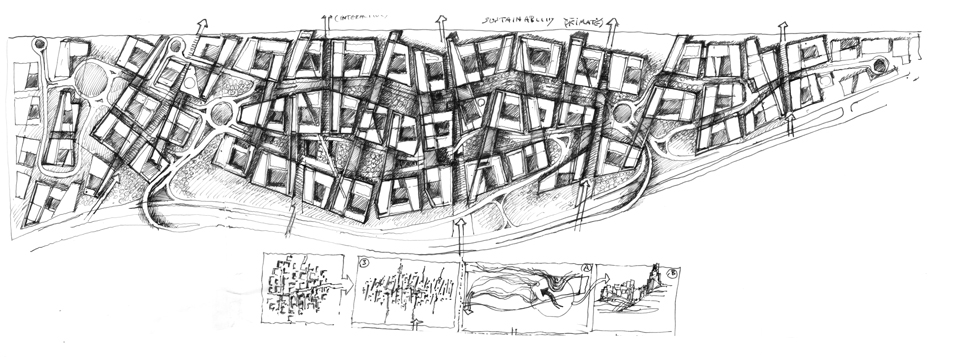

Located at a strategic junction the 2nd ring road, Khandamah development targeted the ongoing demand for Makkah's pilgrims and visitors. The program consisted of 45 towers operating as hotels, apartments, and offices serving a population of 300,000, in addition to two shopping centers, two mosques, police station, & hospital have been added by the client within the podium to serve the highly dense development. The design initiative was inspired by the dramatic silhouette of the horizon of Mount Khandamah's basaltic profile line, turning the natural terrain into a manmade formation of building blocks. The planning phase was generated by a proposed road network providing access to each of the 45 plots. The challenge laid ahead was to reduce the excavation works of the basaltic base to its minimum, and hence the road network was designed to gradually ascend to 50 m elevation above ground level. The outcome was a master plan that reacted inconsonance with the natural terrain. The strong site context was expressed in the architecture of the facades, emphasizing on the two dominating natural colors: the solid basalt and the blue sky. As a reaction the base of each tower was basaltic while the peak was reflective glass & aluminum. The gradual transition from the solid harsh base to the light glazed peak was realized in the first 10 floors over the base through the use of concrete; a modern glimpse of old Makkah
